The following cables and connectors are for Sea-Bird Electronics instruments only. Do not reference this for any WET Labs or Satlantic products.

Cables, mounts, and spares specific to an instrument can be found on the Configure tab and/or Accessories tab on the instrument page.

This page includes generic information on cables (pigtail cables, data I/O cables, and load-bearing underwater cables, as well as cable adapters for connecting a cable to a computer), connectors, and dummy plugs. For cables, the Sea-Bird part number and drawing number is listed. Use the Cable Search to check the drawing if the cable length listed on this page does not meet your needs; cable drawings often list part numbers for the same cable in other lengths.

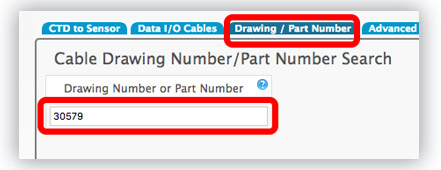

To access the Cable Search drawings, enter the DN number. For example, for 17027, 2-pin pigtail cable (RMG-2FS with lock sleeve), 0.5 m (DN 30579), enter 30579 under the Drawing/Part Number tab as shown here:

screenshot of the cable search interface

Notes:

  • Click the applicable 'Buy Now' link to purchase the item on-line (not all items currently available on-line).
  • Try our Cable Search page to search a database for cables, including Y-cables for multiple auxiliary sensors connecting to a single end cap connector.
  • The actual cable, connector, or dummy plug required is dependent on the instrument (comparison of XSG/RMG connectors to wet-pluggable MCBH connectors). To ensure that you are purchasing the correct part, consult Sea-Bird with your instrument's serial number and information about your instrument configuration / features before placing an order. (Click here to see an example of where to find the serial number on your instrument).

Cables

Pigtail Cables

  • 17027, 2-pin pigtail cable (RMG-2FS with lock sleeve), 0.5 m (DN 30579) - Buy Now
  • 17028, 2-pin pigtail cable (RMG-2FS with lock sleeve), 2.4 m (DN 30579) - Buy Now
  • 17029, 3-pin pigtail cable (RMG-3FS with lock sleeve), 0.5 m (DN 30580) - Buy Now
  • 17030, 3-pin pigtail cable (RMG-3FS with lock sleeve), 2.4 m (DN 30580) - Buy Now
  • 17031, 4-pin pigtail cable (RMG-4FS with lock sleeve), 2.4 m (DN 30581) - Buy Now
  • 17032, 6-pin pigtail cable (AG-206 with lock sleeve), 2.4 m (DN 30582) - Buy Now
  • 171512, 2-pin pigtail cable, Wet-pluggable (MCIL-2FS with MCDSL-F), 2.4 m (DN 32514) - Buy Now
  • 171638, 3-pin pigtail cable, Wet-pluggable (MCIL-3FS with MCDSL-F), 2.4 m (DN  32646) - Buy Now
  • 171368, 4-pin pigtail cable, Wet-pluggable (MCIL-4FS with MCDSL-F), 2.4 m (DN  32363) - Buy Now
  • 171364, 4-pin pigtail cable, Wet-pluggable (MCIL-4MP with MCDSL-F), 2.4 m (DN  32365) - Buy Now
  • 171442, 5-pin pigtail cable, Wet-pluggable (MCIL-5FS with MCDSL-F), 2.4 m (DN  32663) - Buy Now
  • 171513, 6-pin pigtail cable, Wet-pluggable (MCIL-6FS with MCDSL-F), 2.4 m (DN  32515) - Buy Now

Data I/O Cables (not load-bearing)

  • 801374, Data I/O cable, 2.4 m, Wet-pluggable MCIL-4FS to DB-9S (DN  32715) - Buy Now
  • 801380, Data I/O cable, 20 m shielded, RMG-4FS to DB-9S (DN  31222) - Buy Now
  • 801421, Data I/O cable, 20 m shielded, Wet-pluggable MCIL-4FS to DB-9S (DN  32789) - Buy Now
  • 171234, Data I/O extension cable, 0.8 m, RMG-4FS to RMG-4MP (DN  30587) - Buy Now
  • 17762, Data I/O extension cable, 0.8 m, AG-206 to RMG-4MP (DN  31605) - Buy Now
  • 801385, Data/Power interface cable, 2.4 m, RMG-4FS to DB-9S and red/black twisted wire leads (DN  32277) - Buy Now
  • 801206, Data/Power interface cable, 2.4 m, Wet-pluggable MCIL-4FS to DB-9S and red/black twisted wire leads (DN  32366) - Buy Now
  • 801378, Data/Power interface cable, 20 m shielded, RMG-4FS to DB-9S and red/black twisted wire leads (DN  32720) - Buy Now
  • 801850, Data/Power interface cable, 20 m shielded, MCIL-4FS to DB-9S and red/black twisted wire leads (DN  33404) - Buy Now
  • 801412, Data I/O cable (3-pin, no external power), RMG-3FS to DB-9S, 2.4 m (DN  32778) - Buy Now
  • 801366, Data I/O cable (3-pin, no external power), Wet-pluggable MCIL-3FS to DB-9S, 2.4 m (DN  32702) - Buy Now

Load Bearing Data I/O Cables for hand-hauled, real-time profiling (maximum load 45 kg; minimum sheave diameter 20 cm; see Application Note 59  for proper use and limitations)

  • 801150, load-bearing data cable, PMG-4FS to DB-9S, 30 m (DN  32284)
  • 801295, load-bearing data cable, PMG-4FS to  DB-9S, 50 m (DN  32284)
  • 801140, load-bearing data cable, PMG-4FS to  DB-9S, 61 m (DN  32284)
  • 801153, load-bearing data cable, PMG-4FS to  DB-9S, 100 m (DN  32284)
  • 801301, load-bearing data cable, PMG-4FS to  DB-9S, 126 m (DN  32284)
  • 801148, load-bearing data cable, PMG-4FS to  DB-9S, 183 m (DN  32284)
  • 801371, load-bearing data cable, Wet-pluggable MCIL-4FS to DB-9S, 30 m (DN  32643)
  • 801372, load-bearing data cable, Wet-pluggable MCIL-4FS to DB-9S, 60 m (DN  32643)
  • 801337, load-bearing data cable, Wet-pluggable MCIL-4FS to DB-9S, 100 m (DN  32643)
  • 801338, load-bearing data cable, Wet-pluggable MCIL-4FS to DB-9S, 200 m (DN  32643)

Cable Adapters

  • 20200, USB to Serial Port Adapter, FTDI UC232R-10 (connects computers with USB ports to RS-232 instruments) - Buy Now
  • 171888, DB-25S to DB-9P cable adapter (connects computer with 25-pin connector to 9-pin data I/O cable provided with instruments) - Buy Now

Bulkhead Connectors

XSG/AG

  • 17724 Bulkhead connector, 1-pin, XSA-BCL (SBE 21 grounding) - Buy Now
  • 17652 Bulkhead connector, 2-pin, XSG-2-BCL-HP-SS - Buy Now
  • 172265 Bulkhead connector, 2-pin VSG-2-BCL-HP-SS (new 9plus bottom contact) - Buy Now
  • 17653 Bulkhead connector, 3-pin, XSG-3-BCL-HP-SS - Buy Now
  • 17654 Bulkhead connector, 4-pin, XSG-4-BCL-HP-SS - Buy Now
  • 17628 Bulkhead connector, 6-pin, AG-306-HP-SS - Buy Now

Wet-pluggable MCBH

  • 172019 Bulkhead connector, 2-pin titanium, wet-pluggable, MCBH-2MP (WB) Titanium, 1/2-20 - Buy Now
  • 172020 Bulkhead connector, 3-pin titanium, wet-pluggable, MCBH-3MP (WB) Titanium, 1/2-20 - Buy Now
  • 172021 Bulkhead connector, 4-pin titanium, wet-pluggable, MCBH-4MP (WB) Titanium, 1/2-20 - Buy Now
  • 172022 Bulkhead connector, 6-pin titanium, wet-pluggable, MCBH-6MP (WB) Titanium, 1/2-20 - Buy Now
  • 172023 Bulkhead connector, 2-pin aluminum, wet-pluggable, MCBH-2MP (WB) 1/2-20 - Buy Now
  • 172268 Bulkhead connector, 2-pin aluminum, wet-pluggable, MCBH-2FS (WB) 1/2-20 - Buy Now
  • 172024 Bulkhead connector, 3-pin aluminum, wet-pluggable, MCBH-3MP (WB) 1/2-20 - Buy Now
  • 172025 Bulkhead connector, 4-pin aluminum, wet-pluggable, MCBH-4MP (WB) 1/2-20 - Buy Now
  • 172026 Bulkhead connector, 6-pin aluminum, wet-pluggable, MCBH-6MP (WB) 1/2-20 - Buy Now
  • 171450 Bulkhead connector, 5-pin stainless steel, wet-pluggable, MCBH-5M (SBE 48) - Buy Now
  • 171362 Bulkhead connector, 4-pin stainless steel, wet-pluggable, MCBH-4F (SBE 45) - Buy Now

Blanking Plug

  • 171778 Bulkhead connector, blanking plug, stainless steel, 1/2-20

Dummy Plugs and Locking Sleeves

XSG/AG

  • 17726 Dummy plug, 1-pin female, RMA-FSD - Buy Now
  • 17044.1 Dummy plug, 2-pin female, RMG-2FSD, with lock sleeve G-FLS-P - Buy Now
  • 17045.1 Dummy plug, 3-pin female, RMG-3FSD, with lock sleeve G-FLS-P - Buy Now
  • 17046.1 Dummy plug, 4-pin female, RMG-4FSD, with lock sleeve G-FLS-P - Buy Now
  • 17047.1 Dummy plug, 6-pin female, AG-206FSD, with lock sleeve G-FLS-P - Buy Now
  • 17043 Plastic locking sleeve, female G-FLS-P - Buy Now
  • 17420 Dust cap, pin protective cover, G-FLS-P (no hole) - Buy Now
  • 17171.1 Dummy plug, Male, 2, 3 or 4-pin RMG-MPD-LP, with lock sleeve G-MLS-P - Buy Now
  • 17720.1 Dummy plug, 6-pin male AG206-MPD-LP with lock sleeve G-MLS-P - Buy Now
  • 17176.1 Dummy plug, 4-pin male VMG4-MPD with lock sleeve G-MLS-P - Buy Now
  • 17172.1 Dummy plug, 2-pin male RMG-2-MPD-HP with lock sleeve G-MLS-P - Buy Now
  • 17173.1 Dummy plug, 3-pin male RMG-3-MPD-HP with lock sleeve G-MLS-P - Buy Now
  • 17174.1 Dummy plug, 4-pin male RMG-4-MPD-HP with lock sleeve G-MLS-P - Buy Now
  • 17175.1 Dummy plug, 6-pin male AG206-MPD-HP with lock sleeve G-MLS-P - Buy Now
  • 17888 Plastic locking sleeve, male G-MLS-P - Buy Now

Wet-pluggable MCBH

  • 171497.1 Dummy plug, 2-pin female, MCDC-2-F, with lock sleeve MCDLS-F - Buy Now
  • 171500.1 Dummy plug, 3-pin female, MCDC-3-F, with lock sleeve MCDLS-F - Buy Now
  • 171398.1 Dummy plug, 4-pin female, MCDC-4-F, with lock sleeve MCDLS-F - Buy Now
  • 171498.1 Dummy plug, 6-pin female, MCDC-6-F, with lock sleeve MCDLS-F - Buy Now
  • 171795.1 Dummy plug, 2-pin male, MCDC-2-M, with lock sleeve MCDLS-M - Buy Now
  • 172004.1 Dummy plug, 3-pin male, MCDC-3-M, with lock sleeve MCDLS-M - Buy Now
  • 171397.1 Dummy plug, 4-pin male, MCDC-4-M with lock sleeve MCDLS-M - Buy Now
  • 171868.1 Dummy plug, 5-pin male, MCDC-5-M, with lock sleeve MCDLS-M - Buy Now
  • 171922.1 Dummy plug, 6-pin male, MCDC-6-M, with lock sleeve MCDLS-M - Buy Now
  • 171379.1 Dummy plug, 8-pin female, MCDC-8-FS, with lock sleeve MCDLS-F - Buy Now
  • 171192 Plastic locking sleeve, MCDLS-F - Buy Now
  • 171367 Plastic locking sleeve, MCDLS-M - Buy Now
